Heavy Duty Type-E 4-Bolt Flange: ES-4BF-50MMRSE

Heavy Duty Type-E 4-Bolt Flange: ES-4BF-50MMRSE

Type-E Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$527.40
EA

checkbox icon This item ship within 24 hours.

CAD

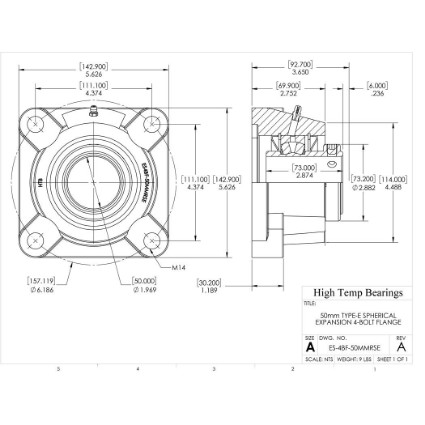

Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size50mm
A (mm)142.9
B (mm)69.9
C (mm)92.7
D (mm)73.2
E (mm)111.1
BoltM14
H (mm)30.2
J (mm)114
K (mm)157.2
L (mm)73
Co (lb)24730
Weight(lbs)9
Code105136
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)50
X (mm)6
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
