Heavy Duty Type-E 4-Bolt Flange: ES-4BF-45MMRSE

Heavy Duty Type-E 4-Bolt Flange: ES-4BF-45MMRSE

Type-E Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$527.40
EA

checkbox icon This item ship within 24 hours.

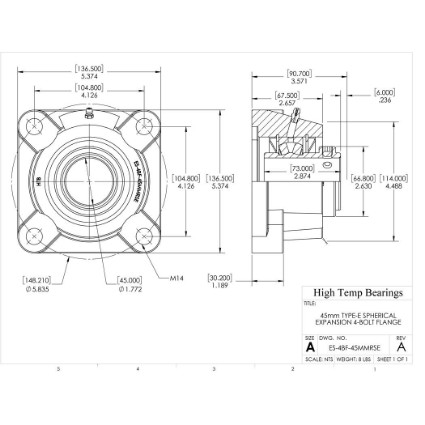

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size45mm
A (mm)136.5
B (mm)67.5
C (mm)90.7
D (mm)66.8
E (mm)104.8
BoltM14
H (mm)30.2
J (mm)108
K (mm)148
L (mm)73
Co (lb)21360
Weight(lbs)8
Code105132
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)45
X (mm)6
C (lb)17980
Max RPM-Triple Lip Seal2425
Max RPM-PTFE Seal3360
Max RPM-Metal Labyrinth Seal3360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
