Heavy Duty Type E 4 Bolt Flange: ES-4BF-400RSE

Heavy Duty Type E 4 Bolt Flange: ES-4BF-400RSE

Type E Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,360.56

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING
Product Information
Attribute nameAttribute value
Code105178
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size4"

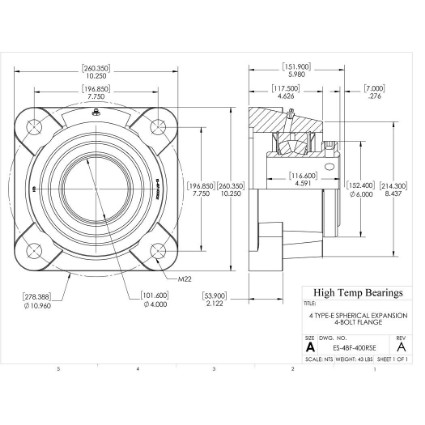

Dimensions
Attribute nameAttribute value
Bore (mm)101.6
A (mm)260.35
B (mm)117.5
C (mm)151.9
D (mm)152.4
E (mm)196.85
H (mm)53.9
J (mm)214.3
K (mm)278.4
L (mm)116.6
X (mm)7
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity84300
Co (lb)Static load capacity112400
Mass
Attribute nameAttribute value
Weight(lbs)43
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM22
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1100
Max RPM-PTFE SealLimiting speed1350
Max RPM-Metal Labyrinth SealLimiting speed1350
