Heavy Duty Type-E 4-Bolt Flange: ES-4BF-35MMRSE

Heavy Duty Type-E 4-Bolt Flange: ES-4BF-35MMRSE

Type-E Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$485.95
EA

checkbox icon This item typically ship in 1-4 weeks.

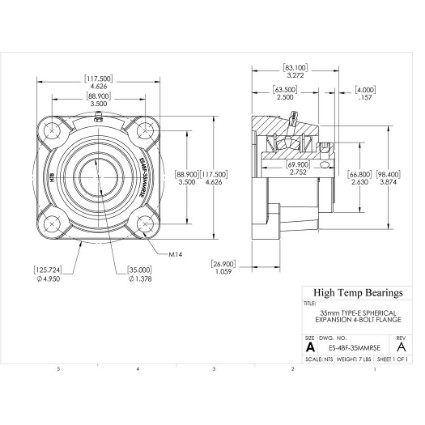

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size35mm
A (mm)117.5
B (mm)63.5
C (mm)83.1
D (mm)59.5
E (mm)88.9
BoltM14
H (mm)26.9
J (mm)98.4
K (mm)125.7
L (mm)69.9
Co (lb)20230
Weight(lbs)7
Code105120
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)35
X (mm)4
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
