High Temperature Type E 4 Bolt Flange: ES-4BF-350TSN-KX

High Temperature Type E 4 Bolt Flange: ES-4BF-350TSN-KX

High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,479.06

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealBIGBEARING
Product Information
Attribute nameAttribute value
Code105823
Shaft Size3-1/2"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical-KX
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar

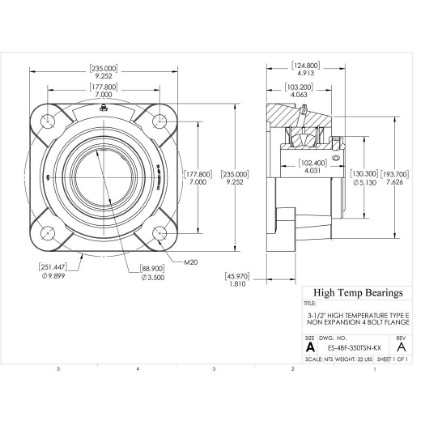

Dimensions
Attribute nameAttribute value
Bore (mm)88.9
A (mm)235
B (mm)103.2
C (mm)130.8
D (mm)130.3
E (mm)177.8
H (mm)45.97
J (mm)193.7
K (mm)251.5
L (mm)102.4
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity62950
Co (lb)Static load capacity83180
Mass
Attribute nameAttribute value
Weight(lbs)32
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1250
Max RPM-PTFE SealLimiting speed1600
Max RPM-Metal Labyrinth SealLimiting speed1600
