High Temperature Type E Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,425.14

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code105814
Shaft Size3-7/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical-KX
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar

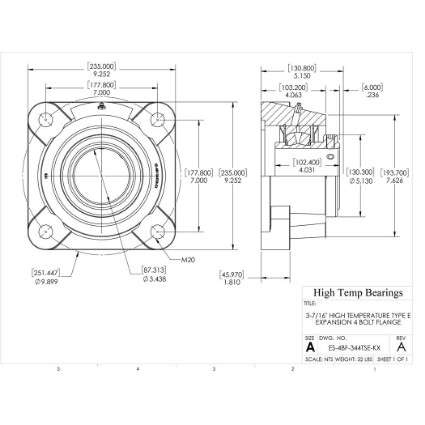

Dimensions

Attribute nameAttribute value
Bore (mm)87.3125
A (mm)235
B (mm)103.2
C (mm)130.8
D (mm)130.3
E (mm)177.8
H (mm)45.97
J (mm)193.7
K (mm)251.5
L (mm)102.4
X (mm)6

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity62950
Co (lb)Static load capacity83180

Mass

Attribute nameAttribute value
Weight(lbs)32

Mounting Information

Attribute nameAttribute value
BoltRecommended Foot BoltM20

Safe Loads

Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1250
Max RPM-PTFE SealLimiting speed1600
Max RPM-Metal Labyrinth SealLimiting speed1600
