Heavy Duty Type E 4 Bolt Flange: ES-4BF-275RSE

Heavy Duty Type E 4 Bolt Flange: ES-4BF-275RSE

Type E Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,014.38
EA

checkbox icon This item ship within 24 hours.

CAD

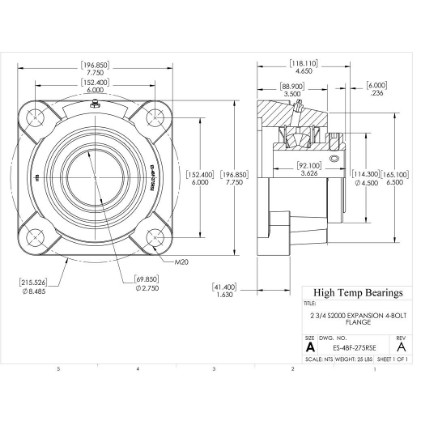

Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size2-3/4"
A (mm)196.85
B (mm)88.9
C (mm)118.11
D (mm)114.3
E (mm)152.4
BoltM20
H (mm)41.4
J (mm)165.1
K (mm)215.65
L (mm)92.1
Co (lb)52830
Weight(lbs)25
Code105154
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)69.85
X (mm)6
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
