High Temperature Type E 4 Bolt Flange: ES-4BF-219TSN-KX

High Temperature Type E 4 Bolt Flange: ES-4BF-219TSN-KX

High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$631.03
EA

checkbox icon This item ship within 24 hours.

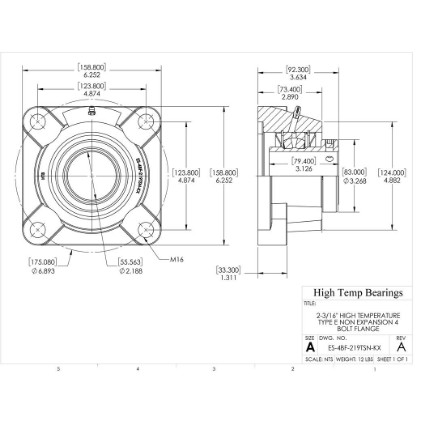

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-3/16"
A (mm)158.8
B (mm)73.4
C (mm)98.3
D (mm)83
E (mm)123.8
BoltM16
H (mm)33.3
J (mm)124
K (mm)175
L (mm)79.4
Co (lb)28100
Weight(lbs)12
Code105643
PackageQTY1
UOMEA
SeriesType-E Spherical-KX
Bore (mm)55.5625
C (lb)23600
Max RPM-Triple Lip Seal2000
Max RPM-PTFE Seal2800
Max RPM-Metal Labyrinth Seal2800
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
