Home
>
Heavy Duty Mounted Bearings
>
Type-E Mounted Spherical Roller Bearings
>
2-3/16" Type E Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty Type-E 4-Bolt Flange: ES-4BF-219RSE
Heavy Duty Type-E 4-Bolt Flange: ES-4BF-219RSE
Type-E Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$582.31
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL

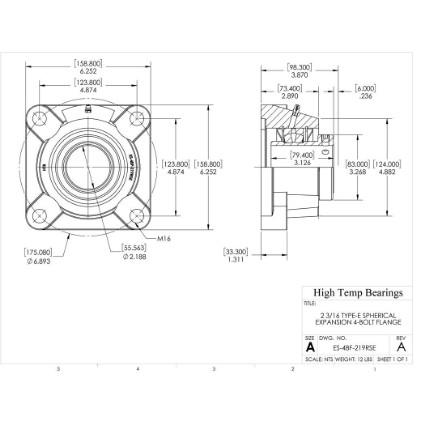

Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
2-3/16"
A (mm)
158.8
B (mm)
73.4
C (mm)
98.3
D (mm)
83
E (mm)
123.8
Bolt
M16
H (mm)
33.3
J (mm)
124
K (mm)
175
L (mm)
79.4
Co (lb)
28100
Weight(lbs)
12
Code
105142
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
55.5625
X (mm)
6
C (lb)
23600
Max RPM-Triple Lip Seal
2000
Max RPM-PTFE Seal
2800
Max RPM-Metal Labyrinth Seal
2800

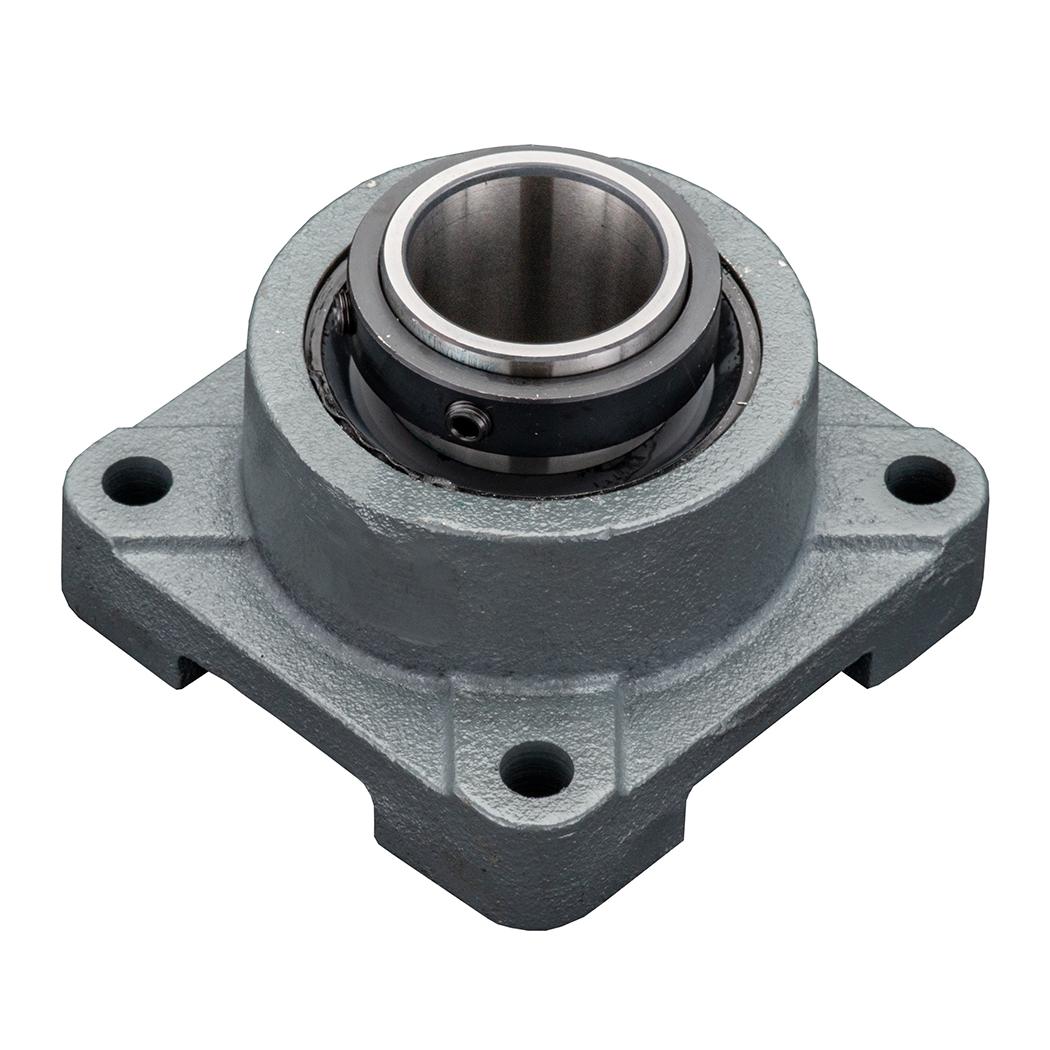

A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
