Home
>
Heavy Duty Mounted Bearings
>
High Temperature Type-E Mounted Spherical Roller Bearings
>
1-15/16" High Temperature Type E Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page

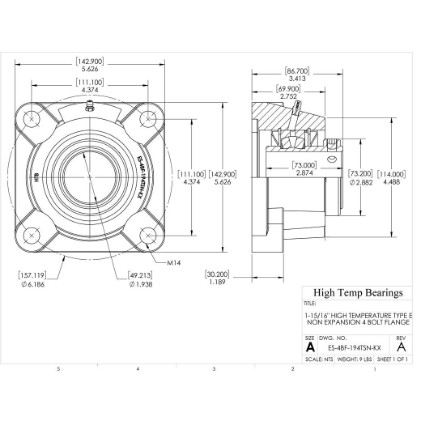

High Temperature Type E 4 Bolt Flange: ES-4BF-194TSN-KX
High Temperature Type E 4 Bolt Flange: ES-4BF-194TSN-KX
High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$567.92
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
1-15/16"
A (mm)
142.9
B (mm)
69.9
C (mm)
92.7
D (mm)
73.2
E (mm)
111.1
Bolt
M14
H (mm)
30.2
J (mm)
114
K (mm)
157.2
L (mm)
73
Co (lb)
24730
Weight(lbs)
9
Code
105602
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
49.2125
C (lb)
20230
Max RPM-Triple Lip Seal
2225
Max RPM-PTFE Seal
3180
Max RPM-Metal Labyrinth Seal
3180
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
