High Temperature Type E 4 Bolt Flange: ES-4BF-169TSN-KX

High Temperature Type E 4 Bolt Flange: ES-4BF-169TSN-KX

High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$529.85
EA

checkbox icon This item typically ship in 1-4 weeks.

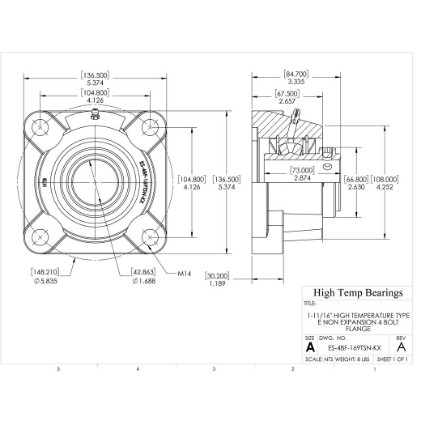

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size1-11/16"
A (mm)136.5
B (mm)67.5
C (mm)90.7
D (mm)66.8
E (mm)104.8
BoltM14
H (mm)30.2
J (mm)108
K (mm)148
L (mm)73
Co (lb)21360
Weight(lbs)8
Code105570
PackageQTY1
UOMEA
SeriesType-E Spherical-KX
Bore (mm)42.8625
C (lb)17980
Max RPM-Triple Lip Seal2425
Max RPM-PTFE Seal3360
Max RPM-Metal Labyrinth Seal3360
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
