Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-90MMRSN

Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-90MMRSN

Type-E Non-Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$1,279.63
EA

checkbox icon This item ship within 24 hours.

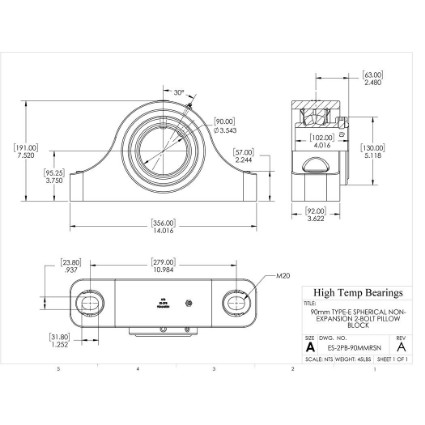

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size90mm
A (mm)356
B (mm)92
D (mm)130
BoltM20
G (mm)31.8
H (mm)95.25
J (mm)191
K (mm)23.8
L (mm)102
M Min (mm)271
M Max (mm)287
Co (lb)83180
Weight(lbs)45
Code105067
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)90
C (mm)57
L1 (mm)131.7
T (mm)69
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
