Type-E Mounted Spherical Roller Bearings
>
2-7/16" Type E Double Locking Non-Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page

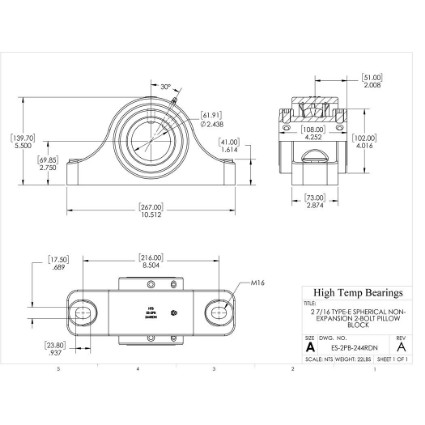

Heavy Duty Double Collar Type-E 2-Bolt Pillow Block: ES-2PB-244RDN
Heavy Duty Double Collar Type-E 2-Bolt Pillow Block: ES-2PB-244RDN
Type-E Double Collar Non-Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$680.74
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Double Locking Collar
Shaft Size
2-7/16"
A (mm)
267
B (mm)
73
D (mm)
102
Bolt
M16
G (mm)
23.8
H (mm)
69.85
J (mm)
139.7
K (mm)
17.5
L1 (mm)
108
M Min (mm)
210
M Max (mm)
222
Co (lb)
46090
Weight(lbs)
22
Code
105033
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
61.9125
C (mm)
41
L (mm)
85.7
T (mm)
57
C (lb)
37090
Max RPM-Triple Lip Seal
1700
Max RPM-PTFE Seal
2300
Max RPM-Metal Labyrinth Seal
2300
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
