Heavy Duty Double Collar Type-E 2-Bolt Pillow Block: ES-2PB-244RDE

Heavy Duty Double Collar Type-E 2-Bolt Pillow Block: ES-2PB-244RDE

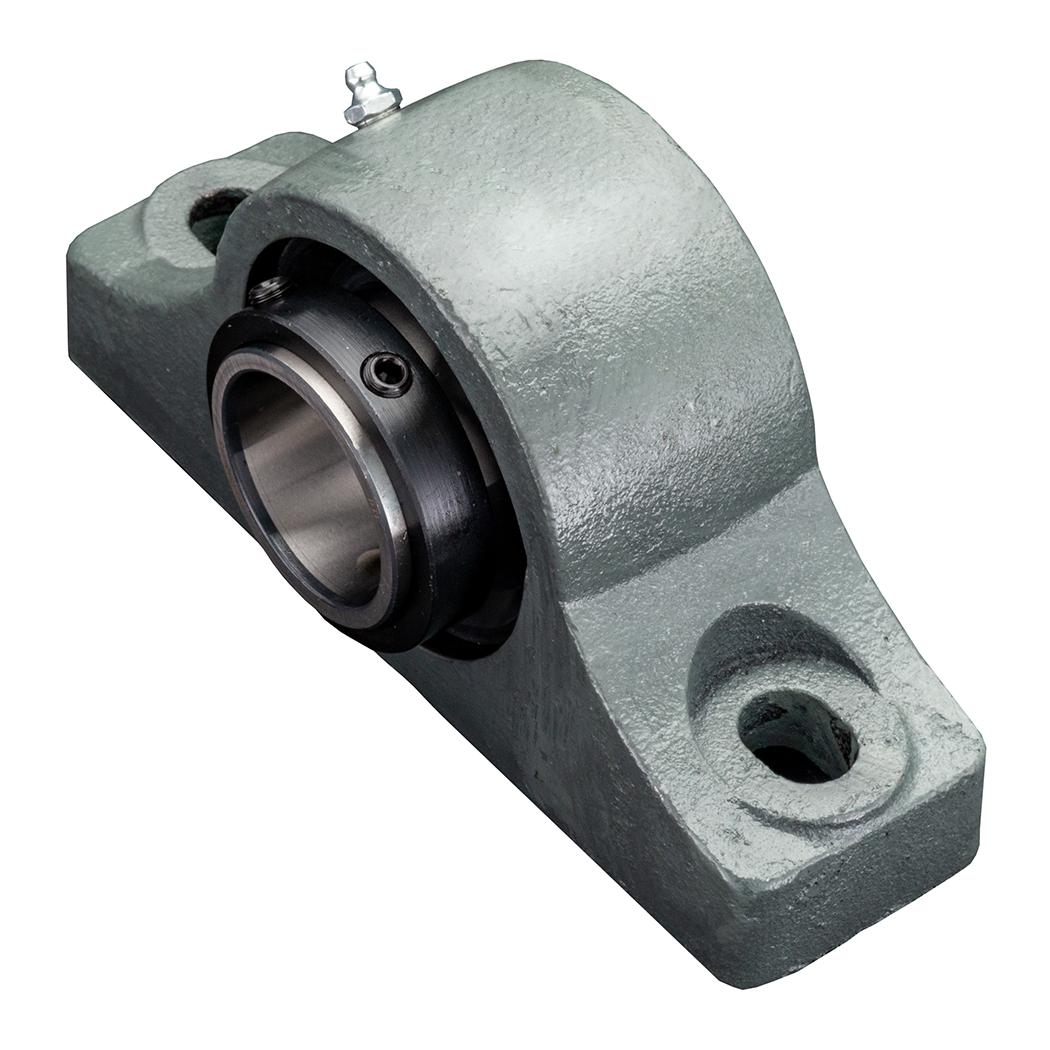

Type-E Double Collar Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$680.74
EA

checkbox icon This item typically ship in 1-4 weeks.

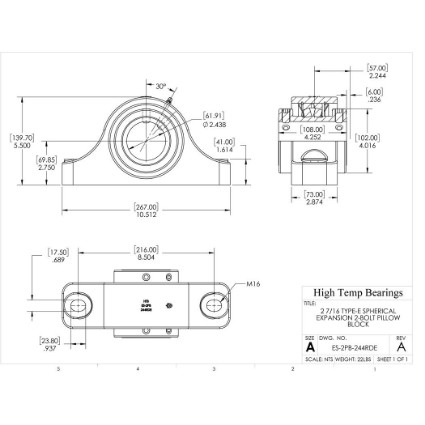

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarDouble Locking Collar
Shaft Size2-7/16"
A (mm)267
B (mm)73
D (mm)102
BoltM16
G (mm)23.8
H (mm)69.85
J (mm)139.7
K (mm)17.5
L1 (mm)108
M Min (mm)210
M Max (mm)222
Co (lb)46090
Weight(lbs)22
Code105032
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)61.9125
C (mm)41
L (mm)85.7
T (mm)57
X (mm)6
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2300
Max RPM-Metal Labyrinth Seal2300
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
