Home
>
Heavy Duty Mounted Bearings
>
Type-E Mounted Spherical Roller Bearings
>
2-3/16" Type E Non Expansion 2 Bolt Pillow Block Heavy Duty Bearing
Print Page

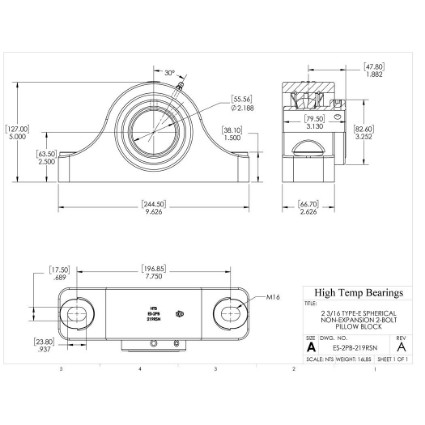

Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-219RSN
Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-219RSN
Type-E Non-Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$527.40
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
2-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
2-3/16"
A (mm)
244.5
B (mm)
66.7
D (mm)
82.6
Bolt
M16
G (mm)
23.8
H (mm)
63.5
J (mm)
127
K (mm)
17.5
L (mm)
79.5
M Min (mm)
190.5
M Max (mm)
203.2
Co (lb)
28100
Weight(lbs)
16
Code
105029
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
55.5625
C (mm)
38.1
L1 (mm)
101.6
T (mm)
53.8
C (lb)
23600
Max RPM-Triple Lip Seal
2000
Max RPM-PTFE Seal
2800
Max RPM-Metal Labyrinth Seal
2800
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
