Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-175RSE

Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-175RSE

Type-E Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$472.48
EA

checkbox icon This item ship within 24 hours.

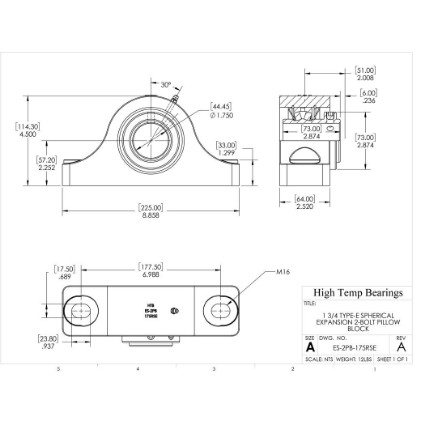

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-3/4"
A (mm)225
B (mm)64
D (mm)73
BoltM16
G (mm)23.8
H (mm)57.2
J (mm)114.3
K (mm)17.5
L (mm)73
M Min (mm)171
M Max (mm)184
Co (lb)24730
Weight(lbs)12
Code105016
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)44.45
C (mm)33
L1 (mm)95.3
T (mm)51
X (mm)6
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
