Heavy Duty Double Collar Type-E 2-Bolt Pillow Block: ES-2PB-169RDN

Heavy Duty Double Collar Type-E 2-Bolt Pillow Block: ES-2PB-169RDN

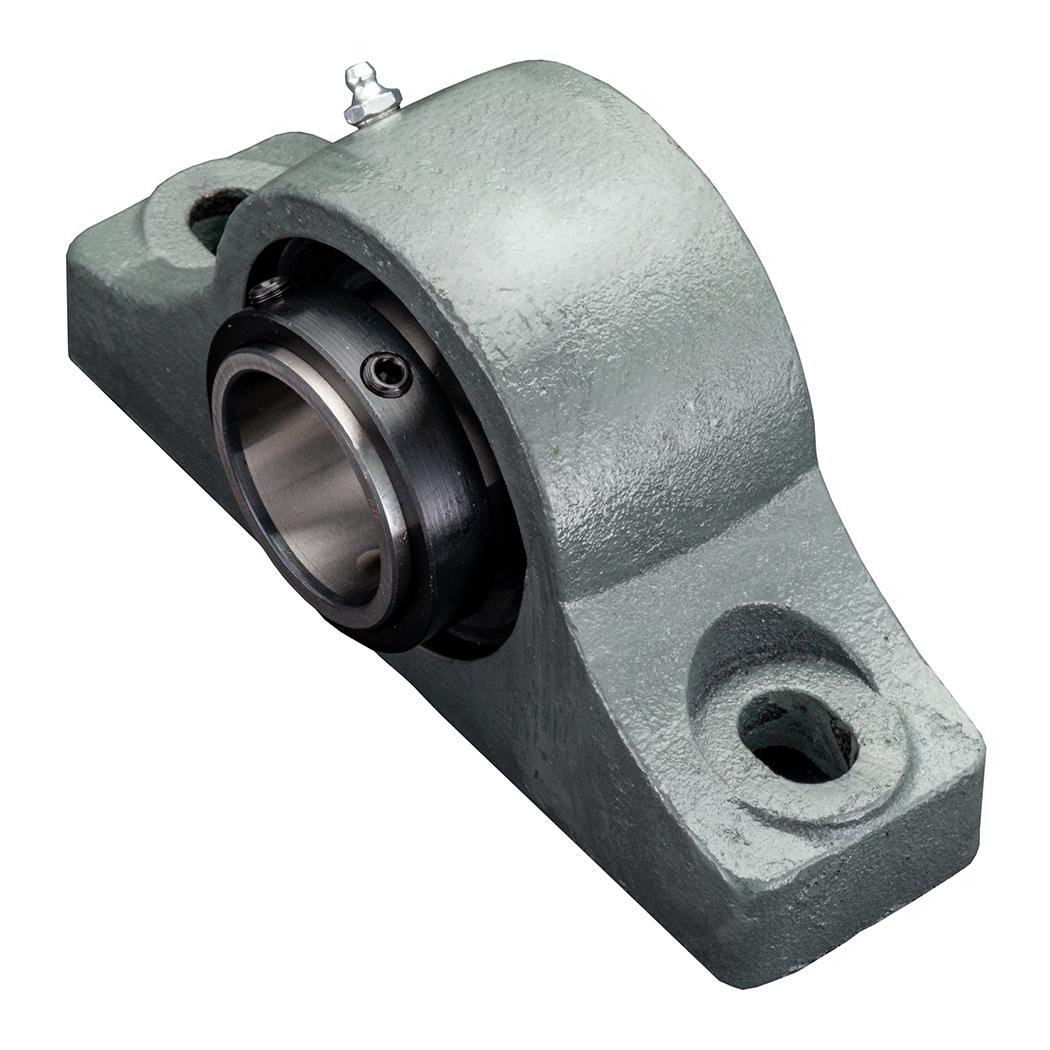

Type-E Double Collar Non-Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$472.48
EA

checkbox icon This item ship within 24 hours.

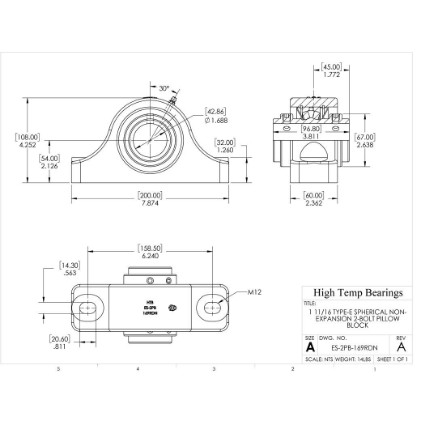

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeNon-Expansion
CollarDouble Locking Collar
Shaft Size1-15/16"
A (mm)200
B (mm)60
D (mm)67
BoltM12
G (mm)20.6
H (mm)54
J (mm)108
K (mm)14.3
L1 (mm)96.8
M Min (mm)152
M Max (mm)165
Co (lb)24730
Weight(lbs)14
Code105013
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)42.8625
C (mm)32
L (mm)73
T (mm)51
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
