Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-150RSE

Heavy Duty Type-E 2-Bolt Pillow Block: ES-2PB-150RSE

Type-E Expansion 2-Bolt Pillow Block Mounted Spherical Roller Bearing
$444.50
EA

checkbox icon This item ship within 24 hours.

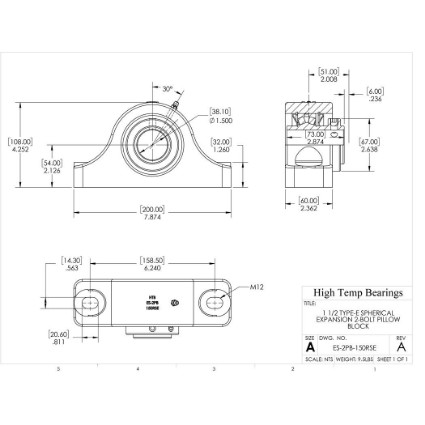

CAD
Specifications:
Attribute nameAttribute value
Construction2-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-1/2"
A (mm)200
B (mm)60
D (mm)67
BoltM12
G (mm)20.6
H (mm)54
J (mm)108
K (mm)14.3
L (mm)73
M Min (mm)152
M Max (mm)165
Co (lb)21360
Weight(lbs)9.5
Code105008
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)38.1
C (mm)32
L1 (mm)96.8
T (mm)51
X (mm)6
C (lb)17980
Max RPM-Triple Lip Seal2425
Max RPM-PTFE Seal3360
Max RPM-Metal Labyrinth Seal3360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
