752 °F Zirconium Oxide, Setscrew Locking, Ball Bearing Insert: CUC213ZOF

752 °F Zirconium Oxide, Setscrew Locking, Ball Bearing Insert: CUC213ZOF

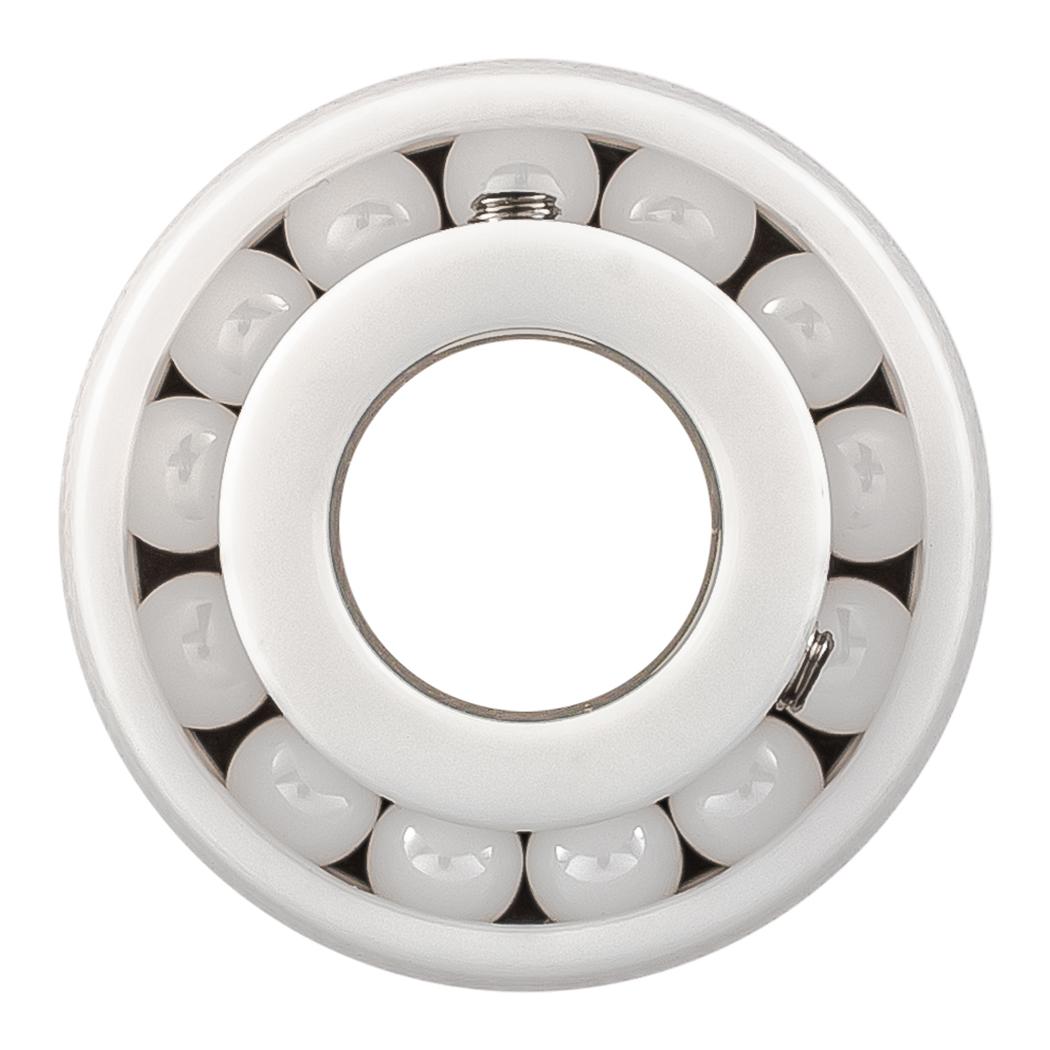

ZrO2 Full Complement High Temperature Setscrew Locking Ball Bearing Insert
$1,613.43
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:
Attribute nameAttribute value
Tmax (F)752
Shaft Size65mm
D (in)4.7244
B (in)2.563
C (in)1.124
S (in)1
h (in)0.354
S1(in)1.563
G (in)0.3937
dsM8x1
C (lb)3858
C0 (lb)2704
Weight(lbs)2.84
Code100096
PackageQTY1
UOMEA
Bore (in)2.5591
Dynamic Capacity (lb)3857.72244
Static Capacity (lb)2704.4522699999998
Tmin (F)-112
SeriesZrO2
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential. One notable weakness is high-temperature steam will degrade Zirconia.
