1472 °F Silicon Nitride, Setscrew Locking, Ball Bearing Insert: CUC206SNF

1472 °F Silicon Nitride, Setscrew Locking, Ball Bearing Insert: CUC206SNF

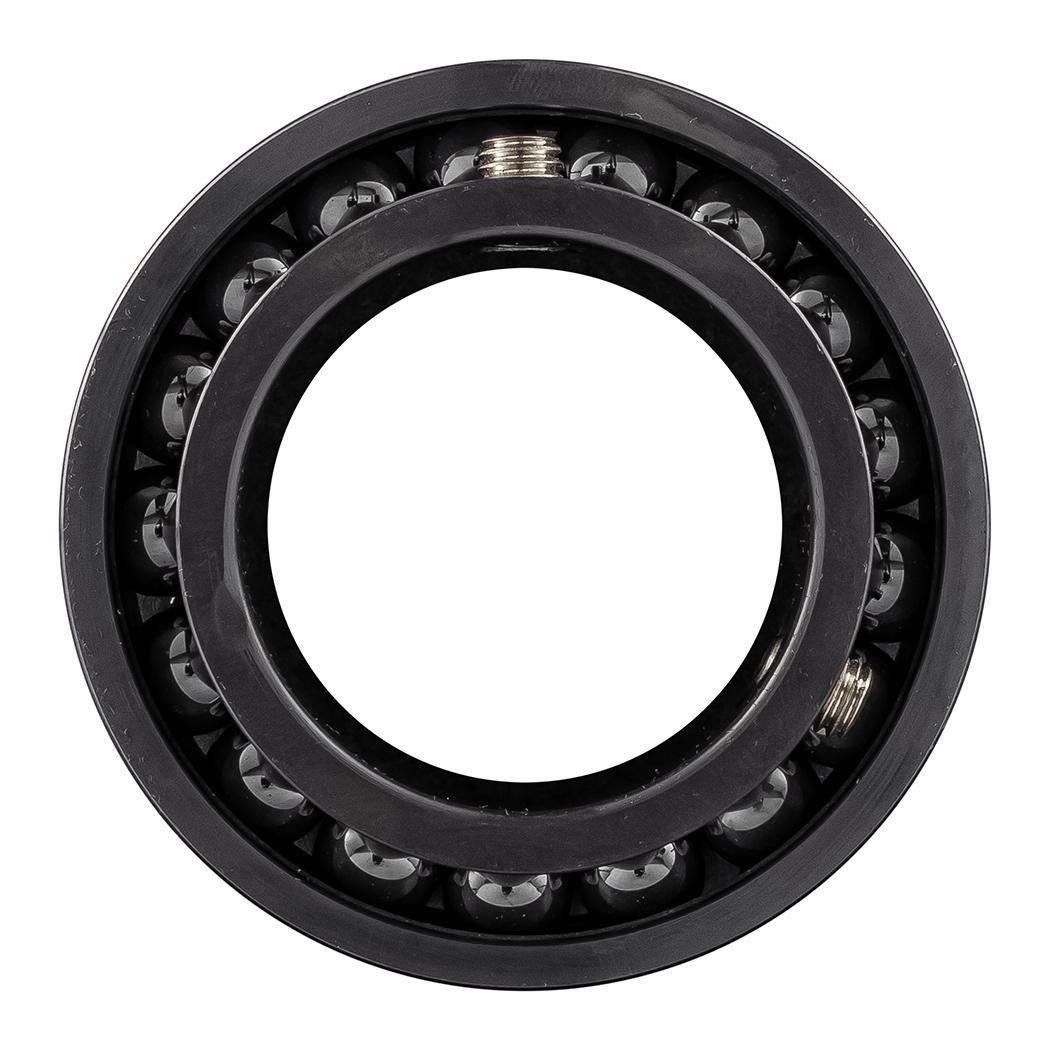

Si3N4 Full Complement High Temperature Setscrew Locking Ball Bearing Insert
$616.92
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:
Description
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Silicon Nitride has a good combination of mechanical, thermal, and electrical properties. It is extremely hard and has exceptional thermal shock, impact resistance, and high-temperature capabilities, with high creep, oxidation, and wear resistance but is exceptionally light in weight. Its low thermal and electrical conductivity is especially useful in applications where corrosion, electric or magnetic fields prohibit the use of metals. It is an excellent choice when high-temperature and high-load abilities are needed. However, it has a very low rate of thermal expansion that must be accommodated to prevent excessive tensile stress on the inner race.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code100047
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesSi3N4
Shaft Size30mm
Dimensions
Attribute nameAttribute value
Bore (in)1.1811
D (in)2.449
B (in)1.5
S (in)0.626
C (in)0.748
h (in)0.1969
S1(in)0.874
G (in)0.1969
dsM6x0.75
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic Load Capacity1096
C0 (lb)Static Load Capacity635
Mass
Attribute nameAttribute value
Weight(lbs)0.32
Safe Loads
Attribute nameAttribute value
Tmax (F)1472
Tmin (F)-112
