4-7/16" CG-3 Thrust Collar|High Temp Bearings

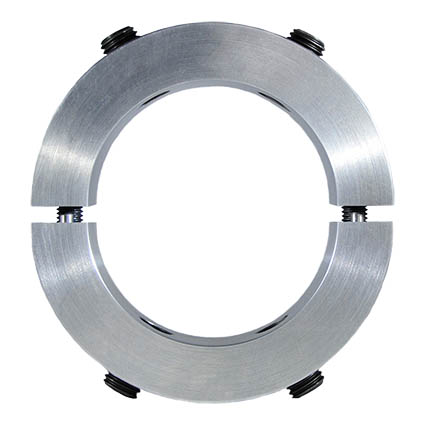

Picture of CG-3 Series Split Thrust Collar

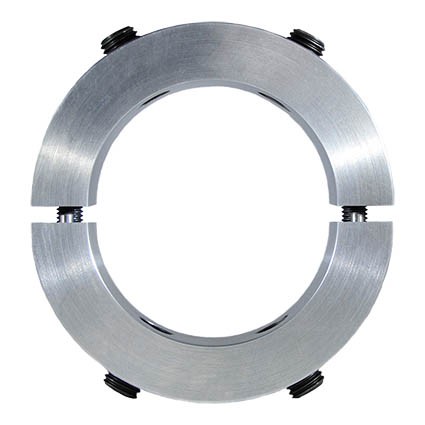

Picture of CG-3 Series Split Thrust Collar

CG-3 Thrust Collar

$812.00

Qty:

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		104560
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		CG-3
Construction		Non-Expansion
Component		Thrust Collar
Shaft Size		4-7/16"

Dimensions

Attribute name		Attribute value
A (in)		4.435
B (in)		6.5
C (in)		1.813
Bore (in)		4.4375
D (in)		N/A
E (in)		N/A
F:MIN-MAX (in)		N/A
J (in)		N/A
H (in)		N/A
L (in)		N/A

Mass

Attribute name		Attribute value
Weight(lbs)		7.82

Mounting Information

Attribute name		Attribute value
Foot Bolt		N/A
Oil Cap (fl.oz)		N/A

Associated Products

Attribute name		Attribute value
Thrust Collar		N/A
Thrust Plate		N/A
Bearing Core		N/A
Housing		N/A
Seal		N/A
Housing Cover		N/A

Crossover Products

Attribute name		Attribute value
Dodge Thrust Collar		133292
Dodge RTL Non-Expansion		N/A
Dodge RTL Expansion		N/A
Dodge RTL Core		N/A
Dodge R-Series PL-XC Liner		N/A
Dodge R-Series WC Liner		N/A
STL Non-Exp Pillow Block		N/A
Dodge STL Exp Pillow Block		N/A
Dodge SSL Exp Pillow Block		N/A
Dodge T-Section	Oil Ring	N/A
Dodge Trapezoidal	Oil Ring	N/A
