Large Back to Back Double Row Tapered Bearing: BT2B332831

Large Back to Back Double Row Tapered Bearing: BT2B332831

Large Back to Back Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410239
Shaft Size360mm
SealsNone
ConstructionDouble Row Back to Back
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

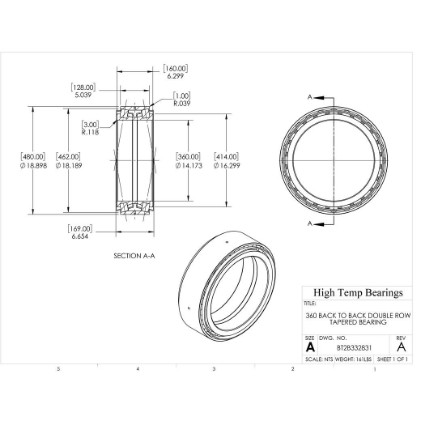

Dimensions
Attribute nameAttribute value
Bore (mm)360
D (mm)480
B (mm)160
d1 (mm)414
P (mm)128
r1-r2 (mm)3
r3-r4 (mm)1
a (mm)169
D1 (mm)462
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity497055
C0 (lb)Static load capacity1124050
Pu (lb)Fatigue load limit91048
eLimiting value0.33
Y0Calculation factor2
kThrust factor1.77
Y1Calculation factor2
Y2Calculation factor3
CF (lbs)Comparitive radial load rating121397
Cfa (lbs)Comparitive axial load rating39342
Mass
Attribute nameAttribute value
Weight(lbs)161
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
