Large Back to Back Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

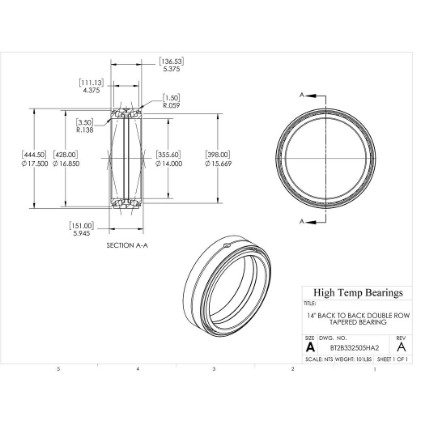

CAD
Specifications:
Description
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410237
Shaft Size14"
SealsNone
ConstructionDouble Row Back to Back
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)355.6
D (mm)444.5
B (mm)136.525
d1 (mm)398
P (mm)111.125
r1-r2 (mm)3.5
r3-r4 (mm)1.5
a (mm)151
D1 (mm)428
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity304168
C0 (lb)Static load capacity820557
Pu (lb)Fatigue load limit67443
eLimiting value0.31
Y0Calculation factor2.2
kThrust factor1.9
Y1Calculation factor2.2
Y2Calculation factor3.3
CF (lbs)Comparitive radial load rating73063
Cfa (lbs)Comparitive axial load rating22481
Mass
Attribute nameAttribute value
Weight(lbs)101
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
