Large Back to Back Double Row Tapered Bearing: BT2B328957

Large Back to Back Double Row Tapered Bearing: BT2B328957

Large Back to Back Double Row Tapered Bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.
Product Information
Attribute nameAttribute value
Code410223
Shaft Size155mm
SealsNone
ConstructionDouble Row Back to Back
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

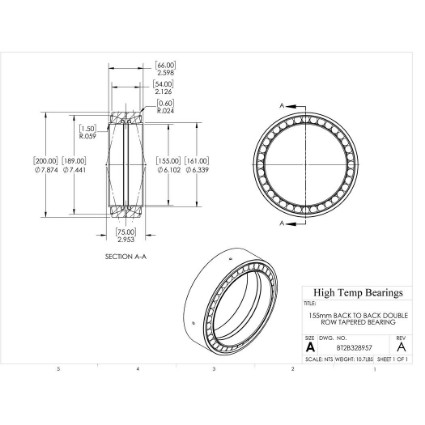

Dimensions
Attribute nameAttribute value
Bore (mm)155
D (mm)200
B (mm)66
d1 (mm)161
P (mm)54
r1-r2 (mm)1.5
r3-r4 (mm)0.6
a (mm)75
D1 (mm)189
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity70141
C0 (lb)Static load capacity139382
Pu (lb)Fatigue load limit13489
eLimiting value0.35
Y0Calculation factor1.8
kThrust factor1.66
Y1Calculation factor1.9
Y2Calculation factor2.9
CF (lbs)Comparitive radial load rating18659
Cfa (lbs)Comparitive axial load rating6497
Mass
Attribute nameAttribute value
Weight(lbs)10.7
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
