Large Back to Back Double Row Tapered Bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410228
Shaft Size260mm
SealsNone
ConstructionDouble Row Back to Back
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

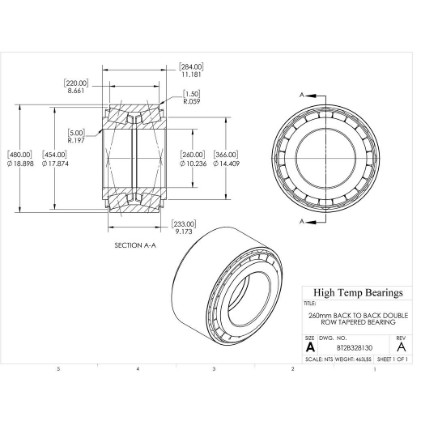

Dimensions

Attribute nameAttribute value
Bore (mm)260
D (mm)480
B (mm)284
d1 (mm)366
P (mm)220
r1-r2 (mm)5
r3-r4 (mm)1.5
a (mm)233
D1 (mm)454

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity973427
C0 (lb)Static load capacity1652354
Pu (lb)Fatigue load limit134886
eLimiting value0.43
Y0Calculation factor1.6
kThrust factor1.36
Y1Calculation factor1.6
Y2Calculation factor2.3
CF (lbs)Comparitive radial load rating242795
Cfa (lbs)Comparitive axial load rating102513

Mass

Attribute nameAttribute value
Weight(lbs)463

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
