Large Back to Back Double Row Tapered Bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410243
Shaft Size380mm
SealsNone
ConstructionDouble Row Back to Back
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

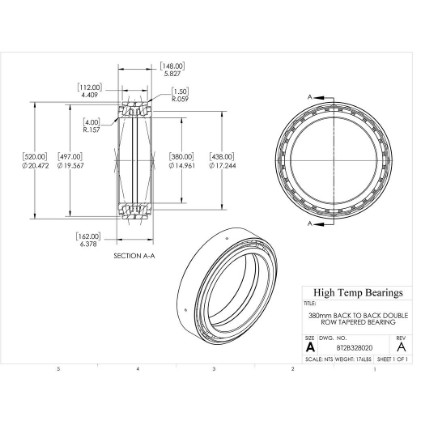

Dimensions

Attribute nameAttribute value
Bore (mm)380
D (mm)520
B (mm)148
d1 (mm)438
P (mm)112
r1-r2 (mm)4
r3-r4 (mm)1.5
a (mm)162
D1 (mm)497

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity514590
C0 (lb)Static load capacity1011645
Pu (lb)Fatigue load limit82056
eLimiting value0.3
Y0Calculation factor2.2
kThrust factor1.92
Y1Calculation factor2.3
Y2Calculation factor3.4
CF (lbs)Comparitive radial load rating125894
Cfa (lbs)Comparitive axial load rating37543

Mass

Attribute nameAttribute value
Weight(lbs)176

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
