Large Face to Face Double Row Tapered Bearing: BT28000HA3

Large Face to Face Double Row Tapered Bearing: BT28000HA3

Large Face to Face Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

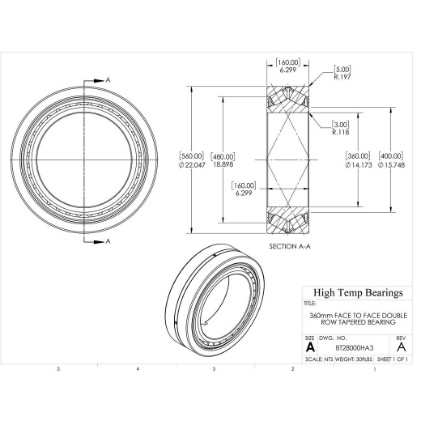

CAD
Specifications:
Description
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. The face to face arrangement is more complicated to use correctly and is less popular than the back to back layout. Its main advantage is that the axial clearance in the bearing will decrease as it heats. It is more prone to overheating without control of heat flow. Still, it is an excellent choice in equipment that requires tight positioning control, provided the operating temperature and heat flow are stabilized. The bearing construction can be customized to meet specific technical requirements.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410268
Shaft Size360mm
SealsNone
ConstructionDouble Row Face to Face
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)360
D (mm)560
B (mm)160
d1 (mm)400
T (mm)160
r1-r2 (mm)3
r3-r4 (mm)5
t (mm)160
D1 (mm)480
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity574614
C0 (lb)Static load capacity1045367
Pu (lb)Fatigue load limit87676
eLimiting value0.72
Y0Calculation factor0.9
kThrust factor0.8
Y1Calculation factor0.94
Y2Calculation factor1.4
CF (lbs)Comparitive radial load rating141630
Cfa (lbs)Comparitive axial load rating101165
Mass
Attribute nameAttribute value
Weight(lbs)309
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
