Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open

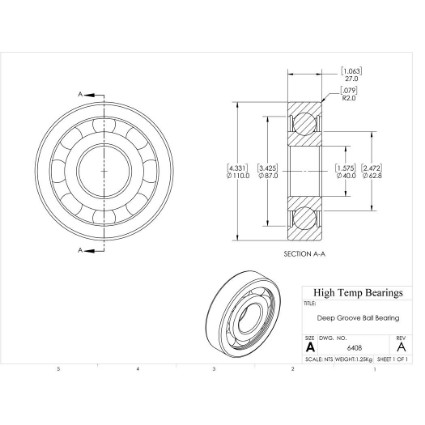

Picture of 40mm 6408 Deep Groove Open Ball Bearing
Deep Groove, Single Row, Open Ball Bearing
$109.00

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200489
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series6400
Construction248F Open
DutyStandard
SealsNone
Shaft Size40mm
Material52100

Dimensions

Attribute nameAttribute value
Bore (mm)40
D (mm)110
B (mm)27
r (mm)2
D2 (mm)87
d1 (mm)62.8

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)2
Da (mm)97
damin (mm)53

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed14000
Nmax (RPM)Limiting speed9000
krMinimum radial load factor35
kaMinimum axial load factor0.5
foCalculation factor12
C (lb)Dynamic load capacity14320
C0 (lb)Static load capacity8206
Pu (lb)Fatigue load limit344

Mass

Attribute nameAttribute value
Weight(lbs)2.76

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
