Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6320-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6320-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$4,104.07
This product has a minimum quantity of 3

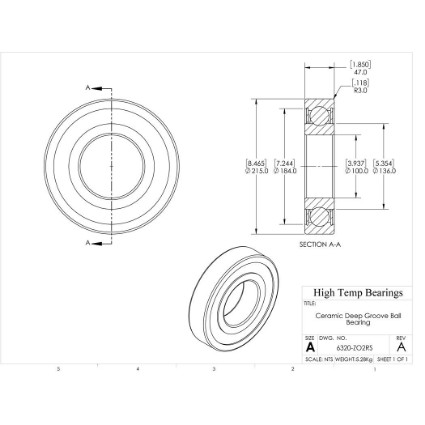

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)100
D (mm)215
B (mm)47
d1 (mm)136
D2 (mm)184
C (lb)11668
C0 (lb)9509
Nmax (RPM)2040
Weight(lbs)11.64
Code102073
PackageQTY1
UOMEA
C (kN)51.9
C0 (kN)42.3
Ra (mm)2.5
Da (mm)201
damin (mm)114
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
