800°C Silicon Nitride Deep Groove Ball Bearing: 6320-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6320-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$6,976.90
This product has a minimum quantity of 3

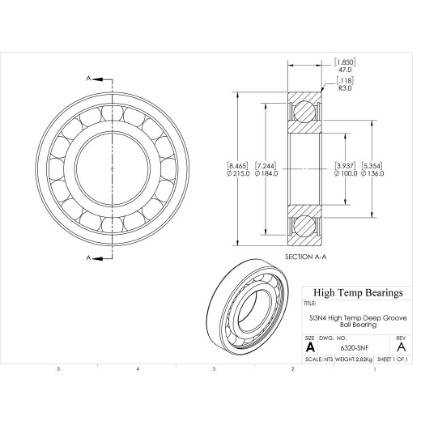

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)100
D (mm)215
B (mm)47
d1 (mm)136
D2 (mm)184
C (lb)9723
C0 (lb)7925
Nmax (RPM)1666
Weight(lbs)6.21
Code270087
PackageQTY1
UOMEA
C (kN)43.25
C0 (kN)35.25
Ra (mm)2.5
Da (mm)201
damin (mm)114
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
