Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6320-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6320-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$7,445.83
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

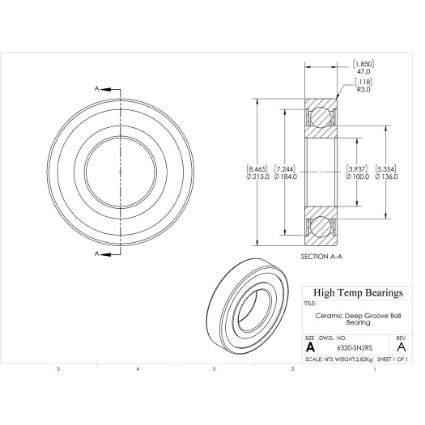

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)100
D (mm)215
B (mm)47
d1 (mm)136
D2 (mm)184
C (lb)9723
C0 (lb)7925
Nmax (RPM)2380
Weight(lbs)6.21
Code102071
PackageQTY1
UOMEA
C (kN)43.25
C0 (kN)35.25
Ra (mm)2.5
Da (mm)201
damin (mm)114
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
