Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6320-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6320-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$7,445.83
This product has a minimum quantity of 3

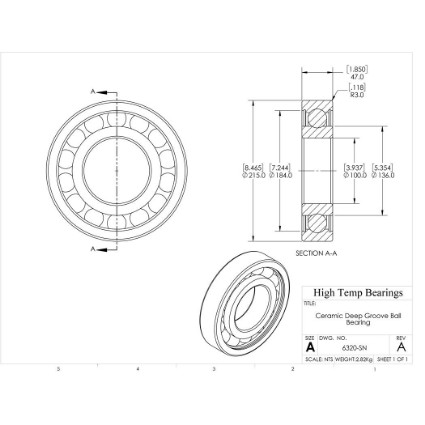

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)100
D (mm)215
B (mm)47
d1 (mm)136
D2 (mm)184
C (lb)9723
C0 (lb)7925
Nmax (RPM)2380
Weight(lbs)6.21
Code102070
PackageQTY1
UOMEA
C (kN)43.25
C0 (kN)35.25
Ra (mm)2.5
Da (mm)201
damin (mm)114
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
