Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6319-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6319-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$3,531.70
This product has a minimum quantity of 3

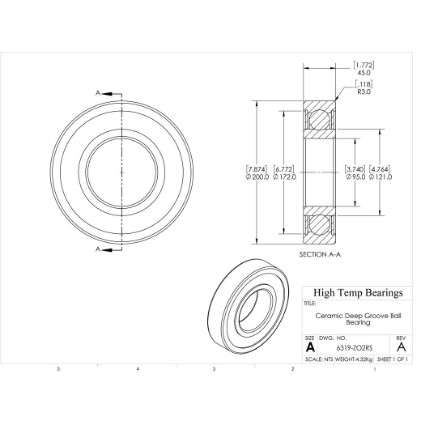

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)95
D (mm)200
B (mm)45
d1 (mm)121
D2 (mm)172
C (lb)10319
C0 (lb)8026
Nmax (RPM)3180
Weight(lbs)9.52
Code102061
PackageQTY1
UOMEA
C (kN)45.9
C0 (kN)35.7
Ra (mm)2.5
Da (mm)186
damin (mm)109
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
