800°C Silicon Nitride Deep Groove Ball Bearing: 6319-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6319-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$5,277.55
This product has a minimum quantity of 3

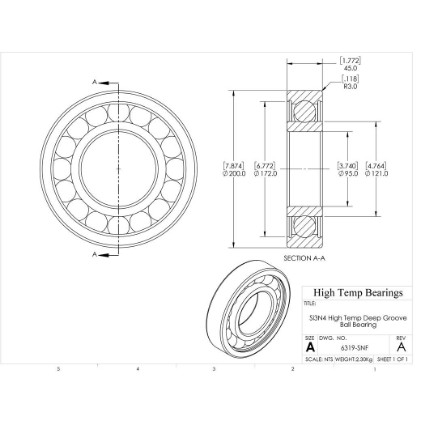

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)95
D (mm)200
B (mm)45
d1 (mm)121
D2 (mm)172
C (lb)8599
C0 (lb)6688
Nmax (RPM)2597
Weight(lbs)5.08
Code102059
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)38.25
C0 (kN)29.75
Ra (mm)2.5
Da (mm)186
damin (mm)109
kr30
ka0.5
fo13
r (mm)3
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
