1200°C Silicon Carbide Deep Groove Ball Bearing: 6319-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6319-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$7,965.76
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

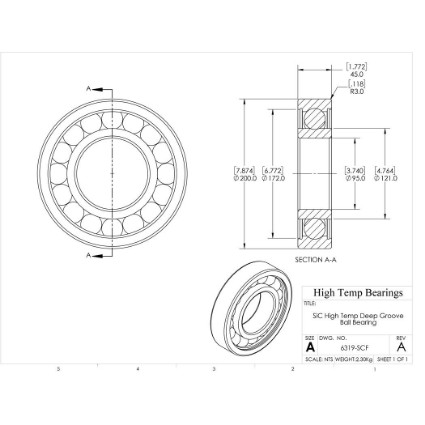

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size95mm
D (mm)200
B (mm)45
d1 (mm)121
D2 (mm)172
C (lb)6879
C0 (lb)5350
Nmax (RPM)2226
Weight(lbs)5.08
Code102056
PackageQTY1
UOMEA
Bore (mm)95
C (kN)30.6
C0 (kN)23.8
Ra (mm)2.5
Da (mm)186
damin (mm)109
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
