Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6319-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6319-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$7,194.30
This product has a minimum quantity of 5

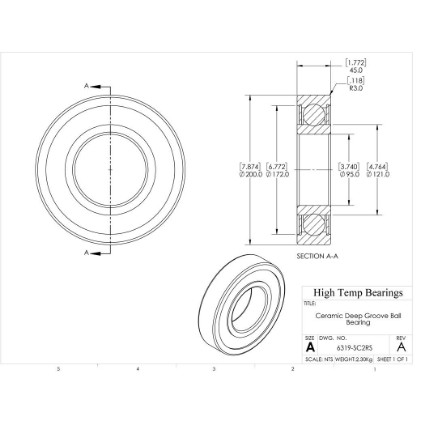

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)95
D (mm)200
B (mm)45
d1 (mm)121
D2 (mm)172
C (lb)6879
C0 (lb)5350
Nmax (RPM)3180
Weight(lbs)5.08
Code102055
PackageQTY1
UOMEA
C (kN)30.6
C0 (kN)23.8
Ra (mm)2.5
Da (mm)186
damin (mm)109
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
