Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6318-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6318-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$5,174.35
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

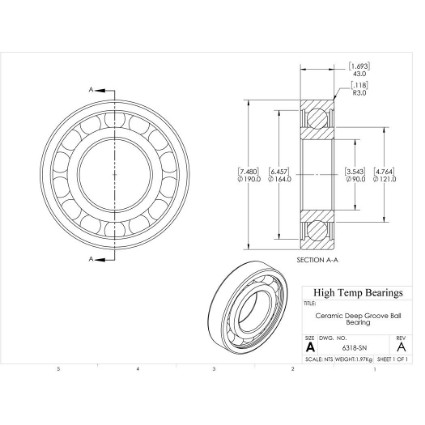

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)90
D (mm)190
B (mm)43
d1 (mm)121
D2 (mm)164
C (lb)8037
C0 (lb)6014
Nmax (RPM)3010
Weight(lbs)4.34
Code102044
PackageQTY1
UOMEA
C (kN)35.75
C0 (kN)26.75
Ra (mm)2.5
Da (mm)176
damin (mm)104
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
