400°C Zirconium Oxide Deep Groove Ball Bearing: 6317-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6317-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$2,017.40
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

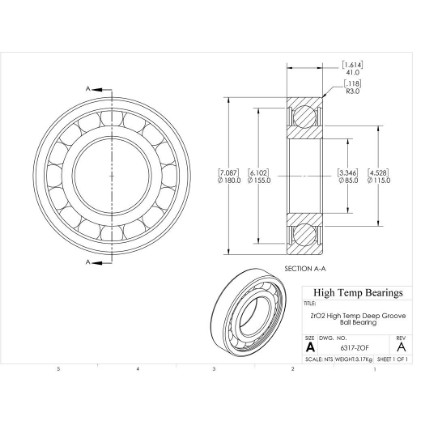

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)85
D (mm)180
B (mm)41
d1 (mm)115
D2 (mm)155
C (lb)8970
C0 (lb)6528
Nmax (RPM)1890
Weight(lbs)6.98
Code102035
PackageQTY1
UOMEA
C (kN)39.9
C0 (kN)29.04
Ra (mm)2.5
Da (mm)166
damin (mm)99
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
