Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6317-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6317-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$4,052.73
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

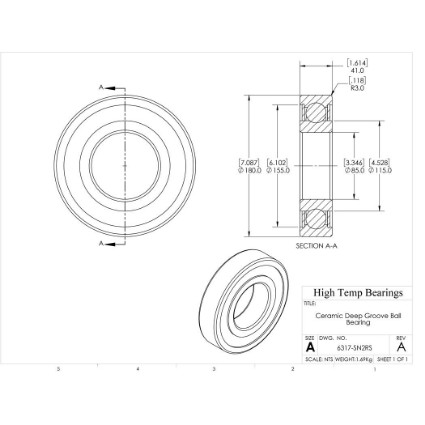

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)85
D (mm)180
B (mm)41
d1 (mm)115
D2 (mm)155
C (lb)7475
C0 (lb)5440
Nmax (RPM)3150
Weight(lbs)3.72
Code102031
PackageQTY1
UOMEA
C (kN)33.25
C0 (kN)24.2
Ra (mm)2.5
Da (mm)166
damin (mm)99
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
