1200°C Silicon Carbide Deep Groove Ball Bearing: 6317-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6317-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$4,098.20
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

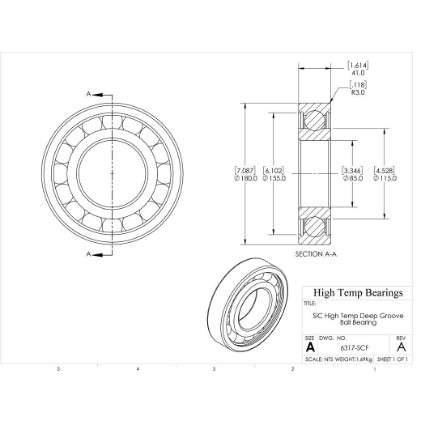

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size85mm
D (mm)180
B (mm)41
d1 (mm)115
D2 (mm)155
C (lb)5980
C0 (lb)4352
Nmax (RPM)1890
Weight(lbs)3.72
Code102029
PackageQTY1
UOMEA
Bore (mm)85
C (kN)26.6
C0 (kN)19.36
Ra (mm)2.5
Da (mm)166
damin (mm)99
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
