Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6317-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6317-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$4,874.06
This product has a minimum quantity of 5

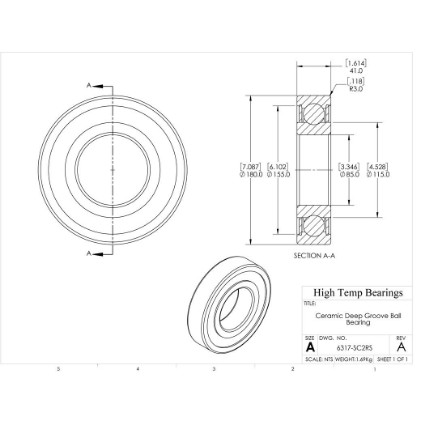

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)85
D (mm)180
B (mm)41
d1 (mm)115
D2 (mm)155
C (lb)5980
C0 (lb)4352
Nmax (RPM)2700
Weight(lbs)3.72
Code102028
PackageQTY1
UOMEA
C (kN)26.6
C0 (kN)19.36
Ra (mm)2.5
Da (mm)166
damin (mm)99
kr30
ka0.5
fo13
r (mm)3
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
