400°C Zirconium Oxide Deep Groove Ball Bearing: 6316-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6316-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$1,930.12
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

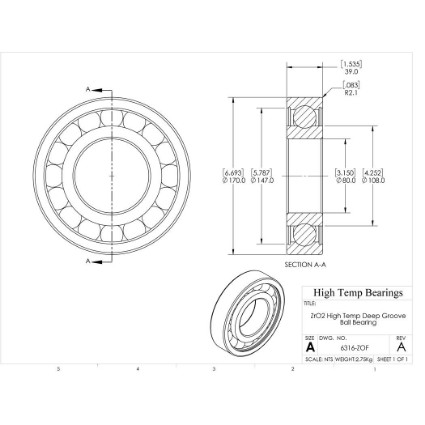

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)80
D (mm)170
B (mm)39
d1 (mm)108
D2 (mm)147
C (lb)8295
C0 (lb)5847
Nmax (RPM)2016
Weight(lbs)6.07
Code102021
PackageQTY1
UOMEA
C (kN)36.9
C0 (kN)26.01
Ra (mm)2
Da (mm)158
damin (mm)92
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
