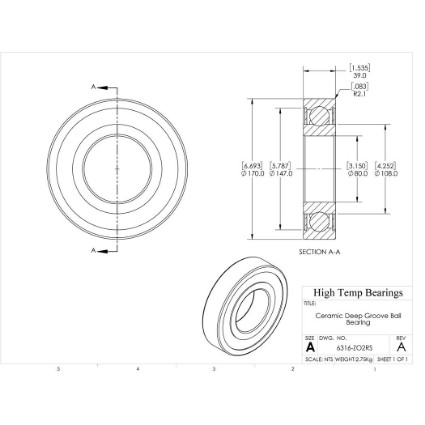

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6316-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6316-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$1,930.12
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)80
D (mm)170
B (mm)39
d1 (mm)108
D2 (mm)147
C (lb)8295
C0 (lb)5847
Nmax (RPM)2880
Weight(lbs)6.07
Code102020
PackageQTY1
UOMEA
C (kN)36.9
C0 (kN)26.01
Ra (mm)2
Da (mm)158
damin (mm)92
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
