800°C Silicon Nitride Deep Groove Ball Bearing: 6316-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6316-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$3,281.20
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

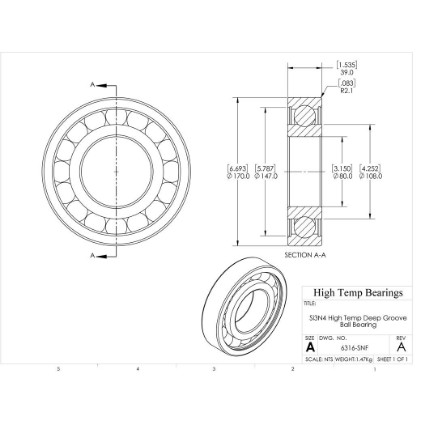

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)80
D (mm)170
B (mm)39
d1 (mm)108
D2 (mm)147
C (lb)6913
C0 (lb)4873
Nmax (RPM)2352
Weight(lbs)3.24
Code270085
PackageQTY1
UOMEA
C (kN)30.75
C0 (kN)21.675
Ra (mm)2
Da (mm)158
damin (mm)92
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
