Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6316-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6316-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$3,559.94
This product has a minimum quantity of 3

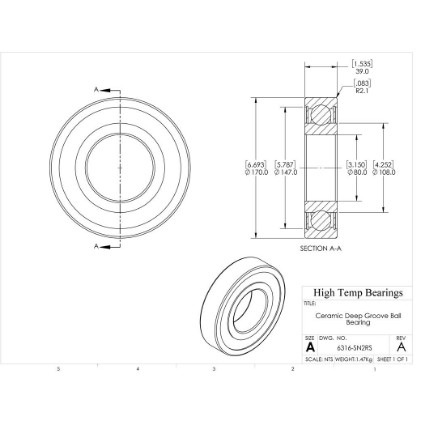

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)80
D (mm)170
B (mm)39
d1 (mm)108
D2 (mm)147
C (lb)6913
C0 (lb)4873
Nmax (RPM)3360
Weight(lbs)3.24
Code102018
PackageQTY1
UOMEA
C (kN)30.75
C0 (kN)21.675
Ra (mm)2
Da (mm)158
damin (mm)92
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
