Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6316-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6316-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$4,242.67
This product has a minimum quantity of 5

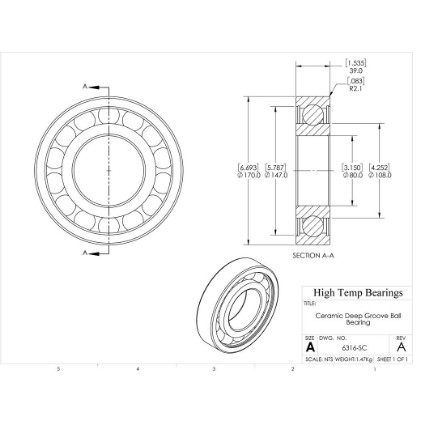

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)80
D (mm)170
B (mm)39
d1 (mm)108
D2 (mm)147
C (lb)5530
C0 (lb)3898
Nmax (RPM)2880
Weight(lbs)3.24
Code102014
PackageQTY1
UOMEA
C (kN)24.6
C0 (kN)17.34
Ra (mm)2
Da (mm)158
damin (mm)92
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
