Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6315-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6315-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$3,000.41
This product has a minimum quantity of 3

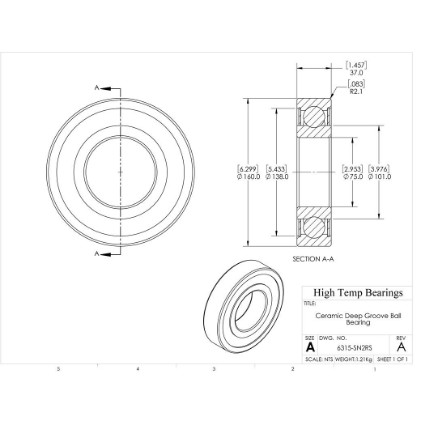

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)75
D (mm)160
B (mm)37
d1 (mm)101
D2 (mm)138
C (lb)6351
C0 (lb)4339
Nmax (RPM)3500
Weight(lbs)2.67
Code102004
PackageQTY1
UOMEA
C (kN)28.25
C0 (kN)19.3
Ra (mm)2
Da (mm)148
damin (mm)87
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
