Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6315-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6315-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$3,000.41
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

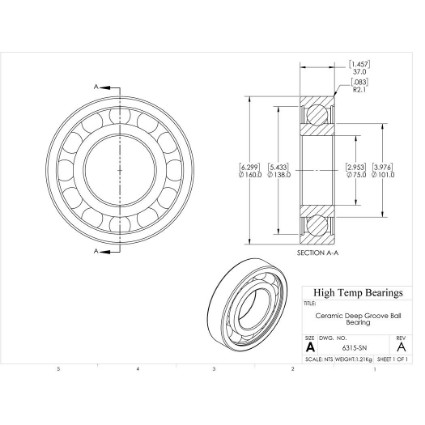

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)75
D (mm)160
B (mm)37
d1 (mm)101
D2 (mm)138
C (lb)6351
C0 (lb)4339
Nmax (RPM)3500
Weight(lbs)2.67
Code102003
PackageQTY1
UOMEA
C (kN)28.25
C0 (kN)19.3
Ra (mm)2
Da (mm)148
damin (mm)87
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
