1200°C Silicon Carbide Deep Groove Ball Bearing: 6315-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6315-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$2,843.58
This product has a minimum quantity of 5

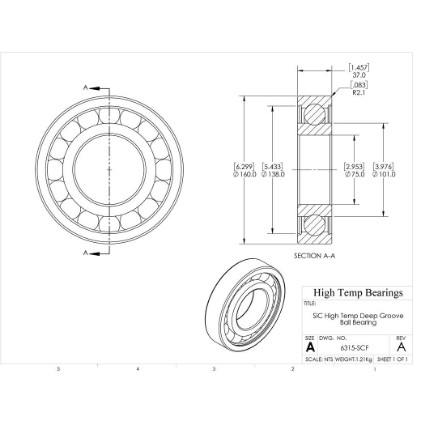

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)75
D (mm)160
B (mm)37
d1 (mm)101
D2 (mm)138
C (lb)5081
C0 (lb)3471
Nmax (RPM)2100
Weight(lbs)2.67
Code102002
PackageQTY1
UOMEA
C (kN)22.6
C0 (kN)15.44
Ra (mm)2
Da (mm)148
damin (mm)87
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
