Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6315-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6315-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$3,457.27
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

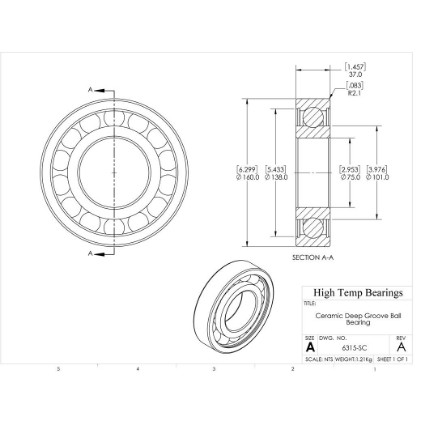

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)75
D (mm)160
B (mm)37
d1 (mm)101
D2 (mm)138
C (lb)5081
C0 (lb)3471
Nmax (RPM)3000
Weight(lbs)2.67
Code102000
PackageQTY1
UOMEA
C (kN)22.6
C0 (kN)15.44
Ra (mm)2
Da (mm)148
damin (mm)87
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
